Weaving Machinery

Toyota Industries develops and manufacturers air jet looms which insert the weft yarn using air, and water jet looms which insert the weft yarn using water. We provide our customers all over the world with state-of-the-art weaving machinery that excels in speedy and reliable performance.

Air Jet Loom

JAT810

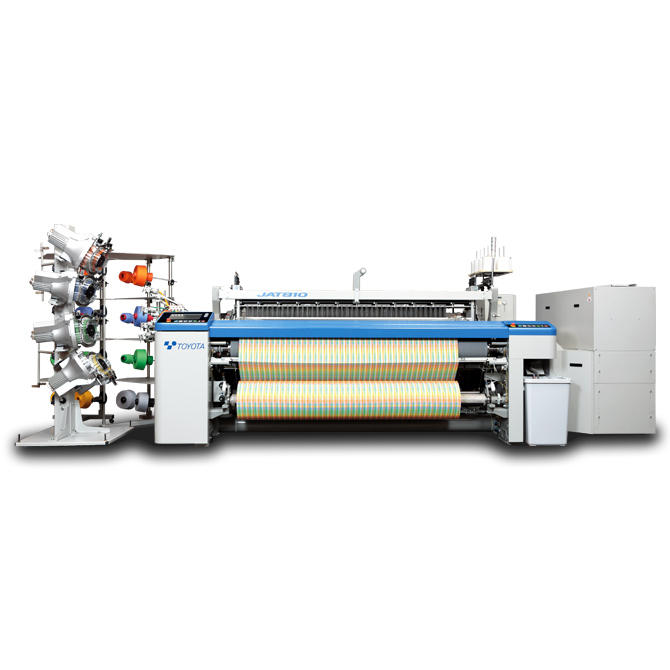

JAT810(Air Jet Loom)

Based on the underlying design concept of the JAT Series of “Weaving the highest quality fabric at the lowest possible cost,” the JAT810 boasts a diverse range of original Toyota features, including an Air-Saving System that reduces energy consumption and the new “E-shed” electronic shedding motion. In addition, a newly developed function panel and a factory management system dramatically improve operability.

[Main specifications]

Weft insertion single electric drum, 2-, 4-, 6-, 8-color exchange electric drum
Nominal reed space 140cm 150cm 170cm 190cm 210cm 230cm 250cm 260cm 280cm 300cm 340cm 360cm 390cm
Shedding negative cam, positive cam, crank, dobby, electric shedding, jacquard

Water Jet Loom

LWT810

LWT810(Water Jet Loom)

The LWT810 enhances the productivity and the quality with the latest technology advancements that customers expect from Toyota while achieving the highest energy savings to protect our environment.

[Main specifications]

Weft insertion single pump, double pump
Nominal reed space 170cm 190cm 210cm 230cm 280cm
Shedding negative cam, positive cam, crank, dobby
